What are the key components of a pyrolysis furnace?

A pyrolysis furnace is a device that converts raw materials such as biomass, waste plastics or waste tires into renewable energy through high-temperature cracking technology. In design and operation, the key components of a pyrolysis furnace directly affect its performance, energy efficiency and product quality.

1. Pyrolysis reaction chamber

The pyrolysis reaction chamber is the core part of the pyrolysis furnace, which is used to realize the cracking reaction of raw materials. In a high-temperature oxygen-free or low-oxygen environment, the raw materials are decomposed into gas, liquid and solid products. High-temperature and corrosion-resistant materials such as stainless steel or heat-resistant ceramics are usually used to ensure that they will not be damaged during long-term operation.

The size and shape of the reaction chamber directly affect the cracking efficiency and need to be customized according to the raw materials and production volume.

2. Heating system

Provide the high-temperature environment required for the cracking reaction, usually achieved by gas, fuel oil, electric heating or exhaust gas recovery heating. The pyrolysis reaction temperature range is usually 300°C to 700°C and requires precise control. An efficient heating system can reduce energy consumption and improve the overall economy of the equipment.

3. Feeding system

Ensure that the raw materials enter the reaction chamber evenly and continuously to prevent blockage or overfeeding that leads to incomplete reaction. The feeding system needs to be well sealed to prevent air from entering and affecting the pyrolysis reaction. Design special feeding equipment according to the form of raw materials.

4. Condensation system

The condensation system cools the pyrolysis gas into liquid to obtain liquid fuel. Equipped with high-efficiency condensers to improve the oil recovery rate. The condensation system often uses corrosion-resistant pipe materials to adapt to the chemical substances in the oil.

5. Discharging system

Responsible for collecting and discharging solid products produced by pyrolysis. The discharging system should be designed with a cooling device to prevent high-temperature carbon black from causing safety hazards. A highly automated discharging system can improve production efficiency and reduce manual intervention.

6. Control system

Used to monitor and adjust the operating status of the pyrolysis furnace, including parameters such as temperature, pressure and feeding rate. Data acquisition collects equipment operation data in real time to ensure that the process is controllable. Equipped with emergency shutdown and alarm functions to prevent equipment failure from causing danger.

A high-quality pyrolysis furnace requires not only an efficient reaction chamber and heating system, but also a reliable feeding, condensation, purification and control system. These components work together to ensure that the pyrolysis process is efficient and safe, and maximizes energy recovery and reduces pollution.

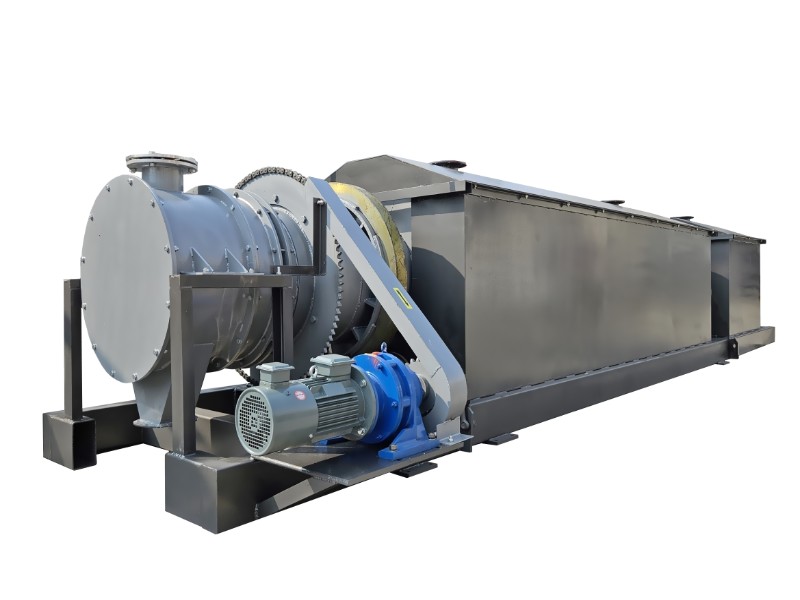

The pyrolysis furnaces produced by Hengju Machinery are of reliable quality and are available in various capacities and configurations for customers to choose from. If you are not sure what production plan you need, Hengju Machinery's professional engineers can also help you customize it. If you have any other questions about pyrolysis furnaces, you can also contact Hengju Machinery at any time and we will answer them professionally for you.
