Product description

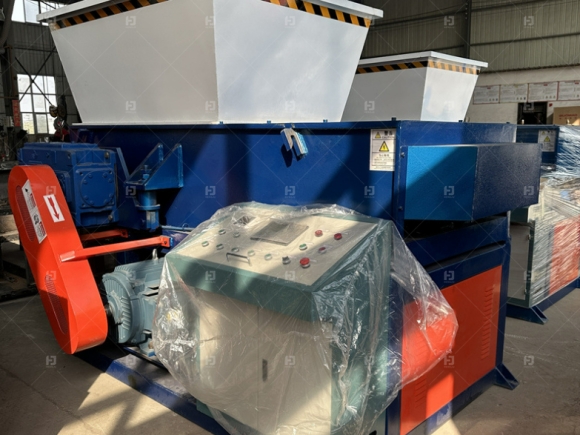

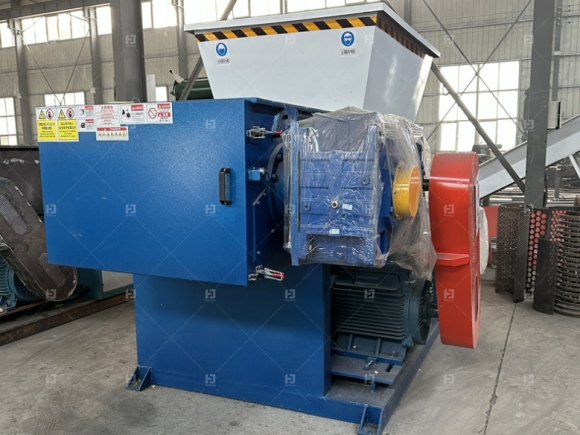

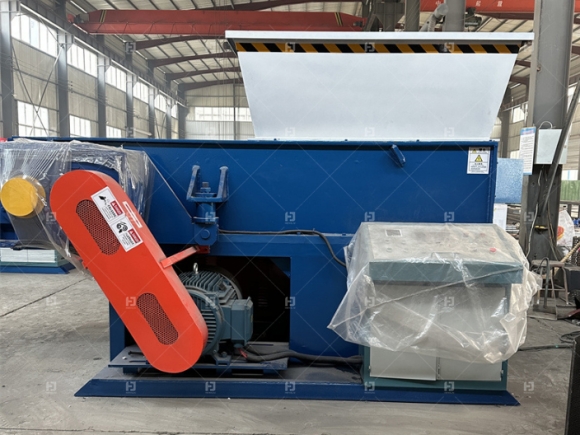

The single-shaft shredder is mainly composed of motor, hard tooth surface reducer, rotating cutter shaft, imported movable knife, fixed knife, frame, base, box, hydraulic cylinder, oil pump, cylinder and other main structures. The fixed knife is installed on the frame, and the removable embedded movable knife is installed on the rotating knife shaft. The number of movable knives depends on the different models and the size of the rotating knife shaft. The movable knife is a four-cornered knife that can be used and can be removed after use. Change the angle until the four sides are blunt before sharpening the knife. Because it is a claw-type movable knife and rotary cutting, it has a long service life, strong cutting ability, and high productivity.
Work process
The material enters the interior of the shredding box through the feeding system. The box carries a shredding blade. The push box pushes the material to the vicinity of the blade. The material is shredded into pieces through the comprehensive action of tearing, squeezing, and shearing by the shredding blade. Small pieces of material are discharged from the screen holes.
Product advantages
1: Environmental protection standards. The equipment has the characteristics of low speed, large torque, low noise, and dust can meet environmental protection standards.
2: Easy to adjust, low maintenance cost, economical and durable, high crushing efficiency
3: Can withstand high torque. The thickness of the tool and the number of claws can be replaced according to different materials.
4: Special steel, made of high-strength and heavy-duty steel, processed and refined.
5: Hydraulic system, intelligent hydraulic control, when crushing difficult materials, the advancement speed automatically slows down to prevent rotor overload. Each hydraulic system is equipped with a cooling system.
