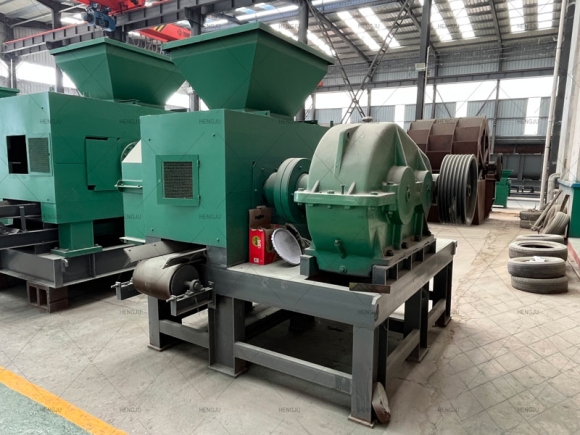

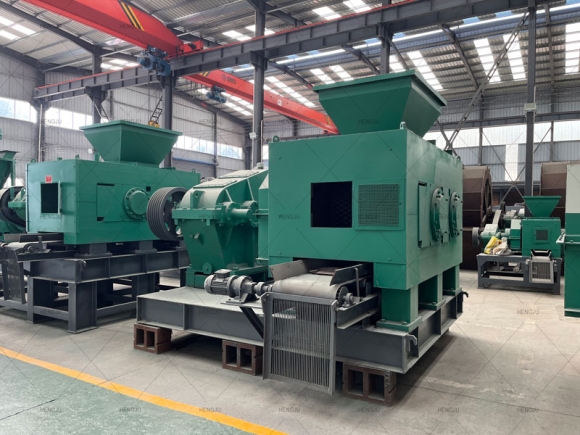

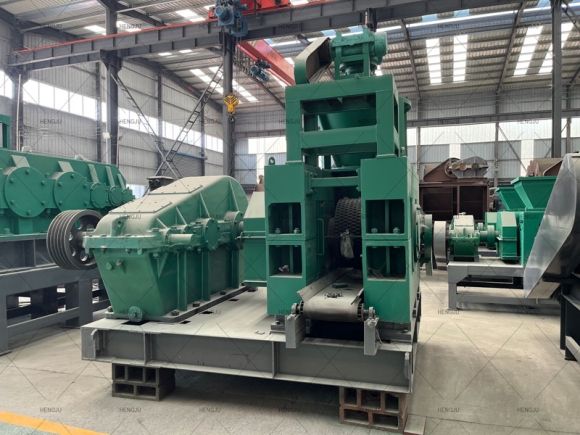

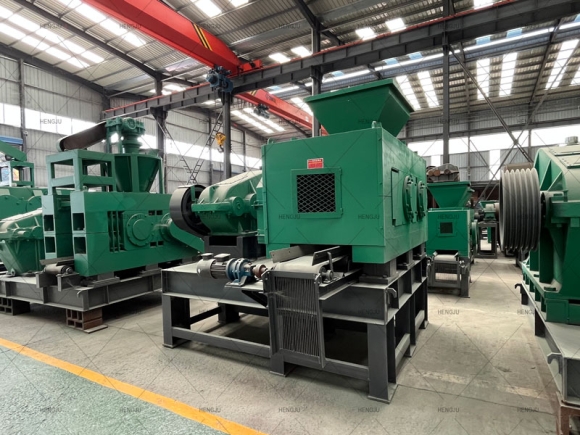

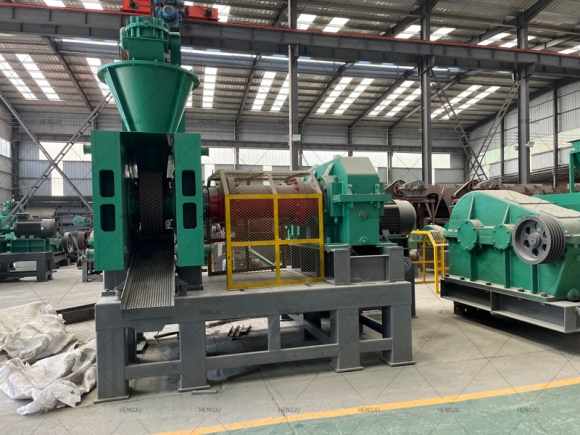

Ball press

The briquetting machine is mainly used for: coal powder molding; coke powder molding; iron filings a

  • Capacity(T):

    0.8-30(customizable)

  • use:

    Pressing powdery materials that are difficult to form

  • Mainly used:

    Powdered coal forming; dry powder forming, tailings forming, etc.

  • Features:

    High molding pressure and adjustable host speed

  • Ball press
  • Ball press
  • Ball press
  • Ball press
  • Ball press
  • Ball press
  • Ball press
  • Ball press
  • Ball press
  • Ball press
Product Intro

The ball press is mainly used for the treatment of mineral tailings to suppress powdery materials that are difficult to form. It is characterized by high forming pressure, adjustable main engine speed, and equipped with a spiral feeding device.

Machine composition

The structure of the ball press consists of three parts: feeding part; transmission part; forming part.
1. The feeding part is mainly to realize quantitative feeding to ensure that the material enters evenly between the rollers. The spiral feeding device is driven by an electromagnetic speed-regulating motor and rotates through a pulley and worm reducer to force the pressed material into the main feed port. Due to the constant torque characteristics of the electromagnetic speed-regulating motor, when the amount of material pressed by the screw feeder is equal to the amount of material required by the host machine, a constant supply pressure can be maintained to stabilize the pellet quality. If the amount of material supplied is too large, the power of the feeding device will be overloaded; if the amount of material supplied is too small, the ball will not form. Therefore, skilled operating skills are an important condition to ensure the normal operation of the pressure ball.
2. Transmission part, the main transmission system is: motor--triangular belt---reducer---open gear---roller. The main engine is powered by an electromagnetic speed-regulating motor, which is transmitted to the driving shaft through a pulley, a cylindrical gear reducer, and a pin coupling. The driving shaft and the driven shaft ensure synchronous operation through open gears. A hydraulic device is installed behind the passive bearing seat. The hydraulic protection device uses a hydraulic pump to drive high-pressure oil into the hydraulic cylinder, causing the piston to produce axial displacement. The front joint of the piston rod rests on the bearing seat to meet production pressure requirements.
3. The forming part mainly refers to the main machine part, and the core part is the roller. When too much material is fed between the two pressure rollers or the metal block enters, the piston rod of the hydraulic cylinder will be overloaded and the hydraulic pump will stop. The accumulator will buffer the pressure change. The overflow valve will open to return oil and the piston rod will shift. Enlarging the gap between the pressure rollers allows hard objects to pass through the pressure rollers, and the system pressure returns to normal, which can protect the pressure rollers from damage.

Application

The ball press can be used to press various powders such as coal powder, iron powder, coking coal, aluminum powder, iron filings, iron oxide scale, carbon powder, carbon powder, slag, gypsum, tailings, sludge, kaolin, activated carbon, coke powder, etc. Powder, waste, and waste residue are widely used in refractory, power plants, metallurgy, chemical, energy, transportation, heating and other industries. The materials formed by the briquetting machine are energy-saving and environmentally friendly, easy to transport, and improve the utilization rate of waste materials. , has good economic and social benefits.

Technical parameters
Model Reducer Roller size Main shaft rotary speed Power Capacity(T) Weight(KG) Overall dimensions(MM)
HJ-150 ZQ 150 Φ150*200mm 12-15r/min 3KW 0.8 T 200KG 800*600*700
HJ-200 ZQ 200 Φ180*200mm 12-15r/min 5.5KW 1.2-1.5 T 500KG 1100*900*1100
HJ-290 ZQ 290 Φ290*200mm 12-15r/min 5.5KW 1 - 3 T 800KG 1600*1200*1400
HJ-360 ZQ 3600 Φ360*200-215-240-280mm 12-15r/min 7.5-11KW 2 - 4 - 6 T 1100KG 2100*1300*1760
HJ-430 ZQ 430 Φ430*280mm 12-15r/min 15-18.5KW 4 - 7T 2200KG 2300*1530*1900
HJ-500 ZQ 550 Φ500*240-280mm 12-15r/min 22-37KW 5 - 10-15 T 4500KG 2600*1750*2100
HJ-650 ZQ 650 Φ650*350mm 10-13r/min 37-45KW 8 - 13 T 5200KG 3420*2000*2200
HJ-750 ZQ 750 Φ750*280-300-320-350mm 10-13r/min 45-75KW 10 - 15 - 20 T 6800KG 3700*2550*2600
HJ-850 ZQ 850 Φ850*300-320-350-460mm 10-13r/min 75-110KW 15 - 20 - 20 T 8000KG 3900*2600*2700
HJ-1000 ZQ 1000 Φ1000*500-530-560 mm 10-13r/min 110-132KW 20 - 25 - 30 T 9500KG 4000*2800*2800
